SHUANGFENG ice block making machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
1 ton
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SHUANGFENG
Model Number:
SFIB5-12A100
Ice Shape:
Ice Block
Voltage:
380V/50HZ
Power(W):
3kw
Dimension(L*W*H):
540*190*700mm
Weight:
5kg
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Overseas third-party support available
ice weight:
5kg
ice bucket mertail:
stainless steel
brine tank:
PPR
compressor:
Semi-hermetic piston compressor
cooling way:
air cooled
water pump:
SHANGHAI
oil separator:
china
Refrigerant:
R22
daily output:
1 ton/day
cycly times:
2 times/day
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
commercial ice block making machine package :
Plywood package
Port
Ningbo or Shanghai
Lead Time :
30 days after received your payment

 SHUANGFENG  ice block making machine for sale



Description



1. Ice block weight is 5kg and ice temperature can reach: -15 degree.

2. Daily capacity of ice block machine is 1tons, we also can be offer as your requirements.

3. It’s big ice so can keep for long time. For some area, specially Africa country the power supply is not steady, and long distance transportation fish by ship, so need big ice keep fresh for food or some other things.

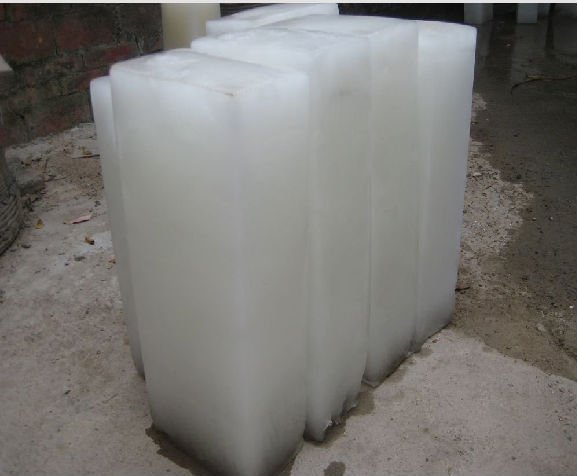

ice block1





 block ice machine  specifications:



Model No.SFIB5-12A100

Daily capcaity

12000kgs per day
ice block maker size3500 * 1700 *1250mm
Block ice weight5kg per piece
ice can size540 *190* 70mm
Ice can quantity100 pieces
Freezing time for each cycel12 hours
Cycles in a day2 times
Quantity of ice block each cycle100 pieces
Quantity of ice block ice a day200 pieces of 5kg



Main parts





A complete ice block making machine is made of three parts: refrigeration unit, brine tank and crane system.



3





 Brine tank

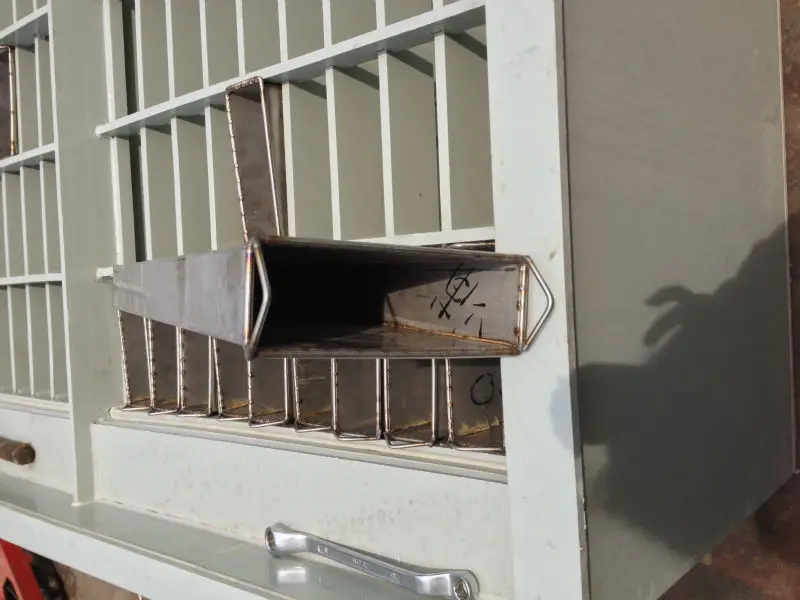

ice bucket.jpg

5kg ice mould






block ice machine

ice block machine.jpg





Main components of ice block machine :



Item

Name of Components

Brand Name

Country

1

Compressor

Copeland

Germany

2

Evaporator

SHILINBOER

China

3

Water condenser

SHILINBOER

China

4

Expansion valve

DANFOSS

Denmark

5

Solenoid valve

Domestic famous brand

china

6

Electrical components

  CHNT

china

7

Ice tank

Stainless steel 304

8.

Ice bucket

Stainless steel pump

china

9

Water pump

Stainless steel pump

china

10

Filter

ZOER china

11

Temperature controller

New Asia

China

12

Pressure Gauge

SINZ                                        china

13

Safety device

Compressor overload,

high/low voltage switch

protection, water breaking,

antifreeze, etc



 Crane system offer by yourself or us.

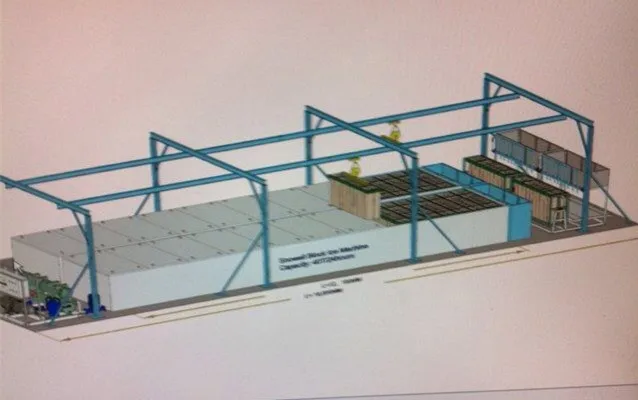

3D of ice block machine.jpg



Drawing of Ice block machine
