8Hp Air Cooled Chiller with 6ton Cooling Capacity

FOB Reference Price:Get Latest Price
US $2,800-3,200 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Air-Cooled
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SHUANGFENG
Model Number:
SFL-08F
Cooling Capability(kw):
6.8Kw
Voltage:
380V-50HZ-3PH or customized
Dimension(L*W*H):
1300*800*1480MM
Weight:
280KGS
Certification:
CE
Warranty:
12 months
After-sales Service Provided:
No overseas service provided
Compressor type:
Hermetic Scroll Type(piston)
Condenser:
High Effective Copper Tube Covered into Aluminium fins, "V" type
Evaporator:
Internal thread high efficiency Shell & Tube heat exchange
Fan:
Rotor Axial fan
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Standar export wooden case
Port
Ningbo/Shanghai

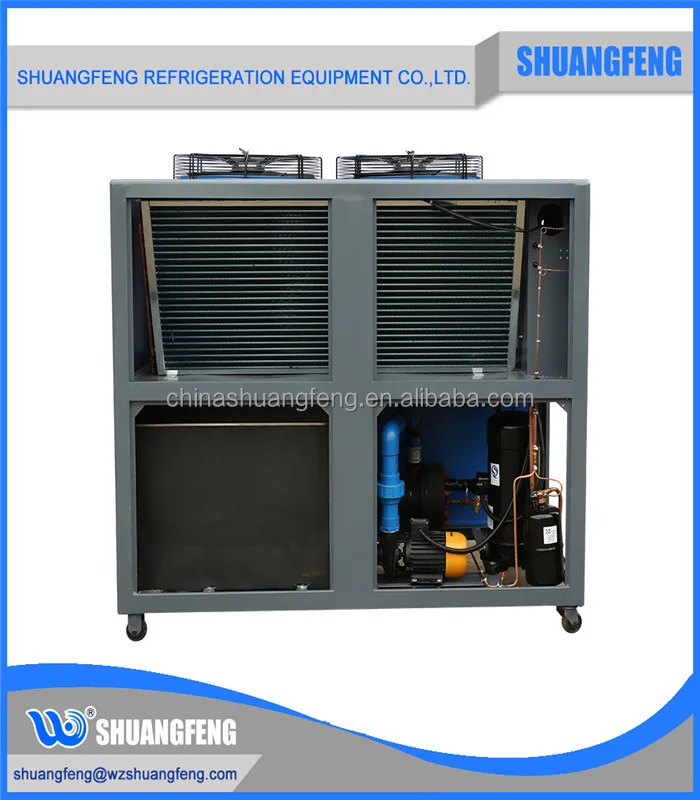

Air Cooled Chiller with 6ton Cooling Capacity

(SFL-08F)

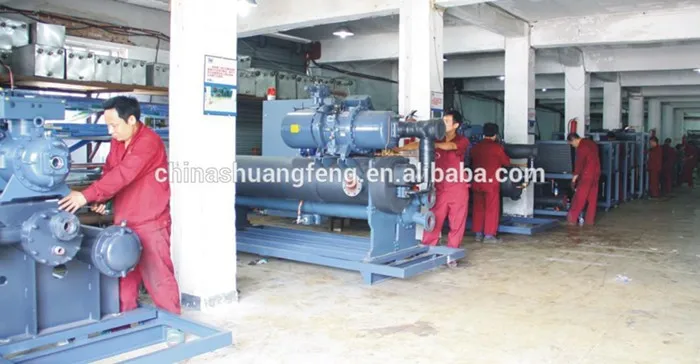

 production workshop

Product Description



1. SHUANGFENG Air cooled chillers can be installed easily and no need cooling tower. There are various specifications of machines available. The unit is designed with multiple safety protections to ensure safe operation.

2.Air cooled chiller adopts international famous-brand compressor, have electricity leakage protection, over loading protection, over pressure protection, refrigerant abnormity protection, compressor overheat protection combination perfect. Corrosion resistant fit in air cooling style heat exchanger, manufactured with technical of quadratic flanging fin machine. Don’t need another pump and water tower.

 3.The machine have the features such as reliable in running, clean easily, strong cooling capacity, low noise, long service life and easy to operate. Can do any kind of product according to customers claim.

10F10Felectricdetail



Technical parameters

Model

SFL-08F



Cooling capacity







Btu/hr

76384

Kcal/Hr

19250

w

22358

USRT

6

Input power(kw)

6.8

Compressor



Model



Piston type

Input power

Kw

6

Refrigerant



Species



R22

Throttle model



The bass capillary

Evaporator







Model



Internal thread high efficiency shell and tube type

Flow of refrigerated water

M3/h

12

Water pipe interface

PT

1.5”

Condenser





Model



Air cooled condenser made up of Aluminum fin and copper tube,

“V” type

Cooling air amount

M3/h

8000

Fan power

Kw

0.18*2

Protector

High and low pressure protection, overload protection,

anti-phase protection, compressor over temperature protection,

fusible plug protection, automatic temperature switch protection,etc.

Cistern storage(L)

90



External size(mm)





L

1300

W

800

H

1480

Weight(kg)

280











Packaging & Shipping

  For the packing, we always do plywood wooden case for the 8Hp air cooled chiller.  It is very safe for machine, a void friction. Also it just take 2CBM space, easy to move it to your place.

air cooled water chiller packging

Company Information



1. WENZHOU SHUANGFENG REFRIGERATION EQUIPMENT MANUFACTURE CO.,LTD since founded in 1999, Specialized in INDUSTRIAL CHILLERS.

2.50 people in our factory, most of them work there more than 5 years. Engineers have 25 years experience.

3. Excellent quality and competitive price.

4. Our lovely customer from  Saudi Arabia, Austria, Australia, Syria, Poland, Pakistan, dubai, Colombia, Ghana, manzanillo, Mauritius, Bangladesh, Peru, yemen, Iraq, Iran, Israel, Indonesia, Vietnam. And many of them who visit our factory, they are very satisfied with us. Some we have become thier long-term supplier.

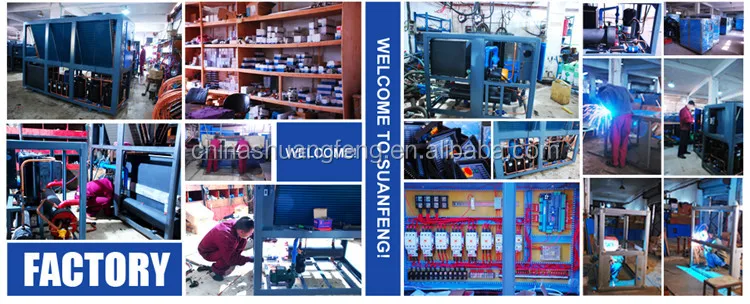

factory







exhibition



FAQ



1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 1999.
2. What's the order process?
Inquiry---provide us all clear requirements.
Quotation---official quotation form with all clear specifications.
Contract confirmation---provide correct contract details.
Payment terms--- T/T 30% in advanced, balanced before shipment.
Production---mass production

Testing---8hours, to ensure the quality of the machine
Shipping--- by sea, train, air or courier. Detailed picture of package will be provided.

Installation---install video/install manual

3.What terms of payment you use?
T/T, L/C,D/A,D/P,etc.

4. How to get a prompt quotation?

When you send the inquiry to us, pls kindly send it with below technical  information.

1)water chiller type: Air cooled or water cooled

2)Cooling capacity:       _____    Kcal/hr  or   _____KW

3)Refrigerant:  R22 or others

4) Voltages and Frequency :   ______V/PH/HZ

5) Which your machine?

5.Welcome to contact us!
