SF block ice machine 3T

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Supply Ability:
10 Set/Sets per Month
Port:
Ningbo or Shanghai
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Capacity:
3Ton
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
SHUANGFENG
Model Number:
SFIB5-8A200
Ice Shape:
Ice Block
Voltage:
380V/50HZ
Dimension(L*W*H):
540*190*700mm
Weight:
5kg
Certification:
CE
Warranty:
one year
After-sales Service Provided:
Overseas third-party support available
ice weight:
5kg
ice bucket mertail:
stainless steel

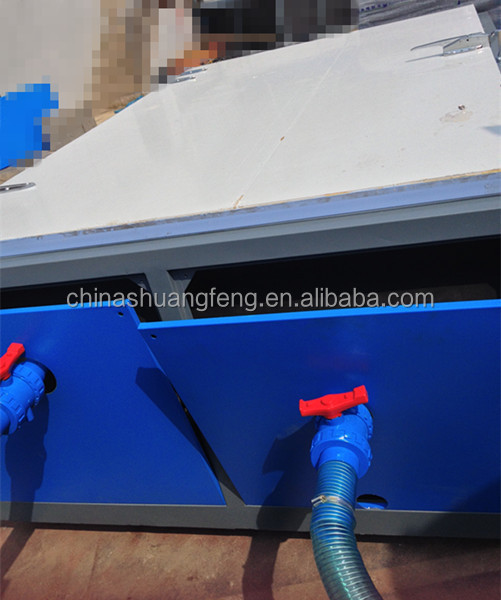

brine tank:
PP
compressor:
Semi-hermetic piston compressor
cooling way:
air cooled
water pump:
stainless steel
refrigerant:
R22
Ice bucket qty:
200
dailyout:
3000kgs
Packaging & Delivery
Packaging Details
industrial ice making machine block package :
Plywood package
Delivery Time
30 days after received your payment

SF block ice machine 3T



Description



1. Ice block weight is 5kg and ice temperature can reach: -15 degree.

2. Daily capacity of ice block machine is 3000kgs, we also can be offer as your requirements.

3. It’s big ice so can keep for long time. For some area, specially Africa country the power supply is not steady, and long distance transportation fish by ship, so need big ice keep fresh for food or some other things.







 block ice machine  specifications:



Model No.SFIB5-8A200

Daily capcaity

3000kgs per day
ice block maker size1300 * 800 *1480mm
Block ice weight5kg per piece
ice can size540 *190* 70mm
Ice can quantity200 pieces
Freezing time for each cycel8 hours
Cycles in a day3 times
Quantity of ice block each cycle200 pieces
Quantity of ice block ice a day600 pcs of 5kg



Main parts

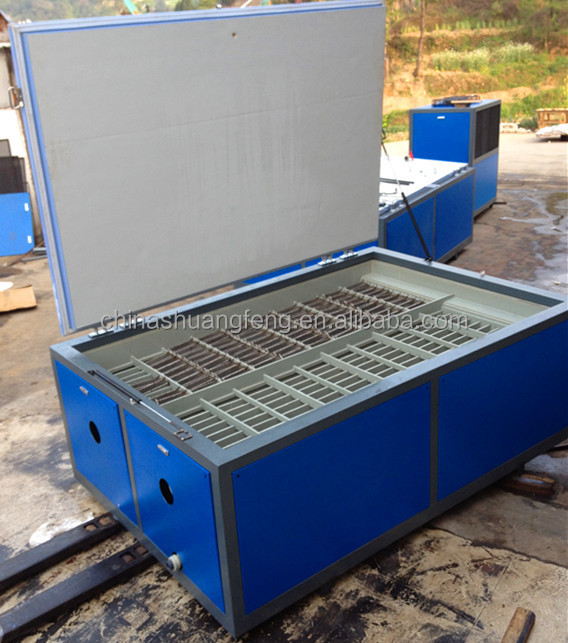

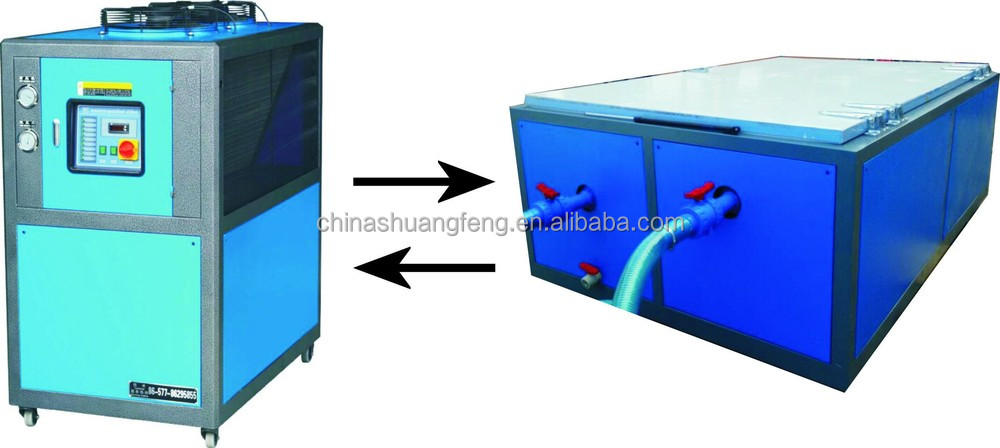

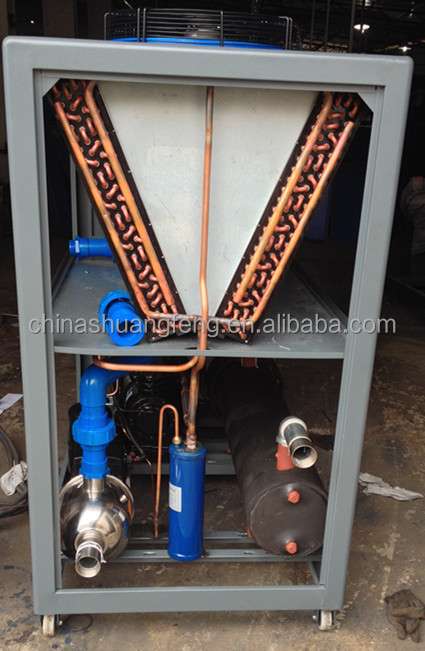

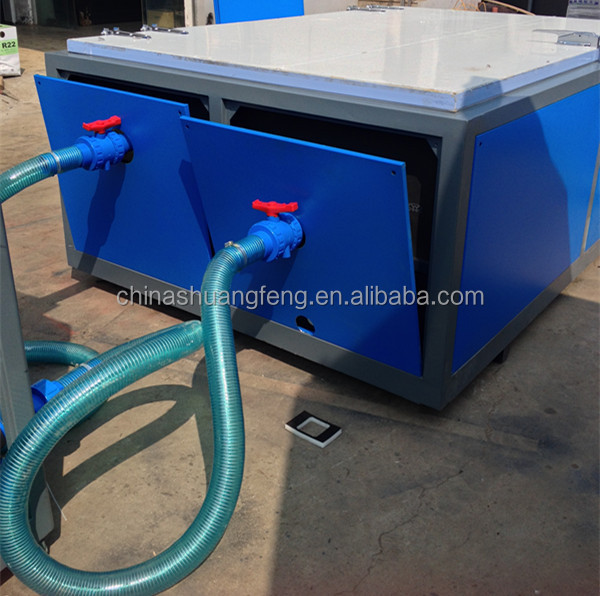

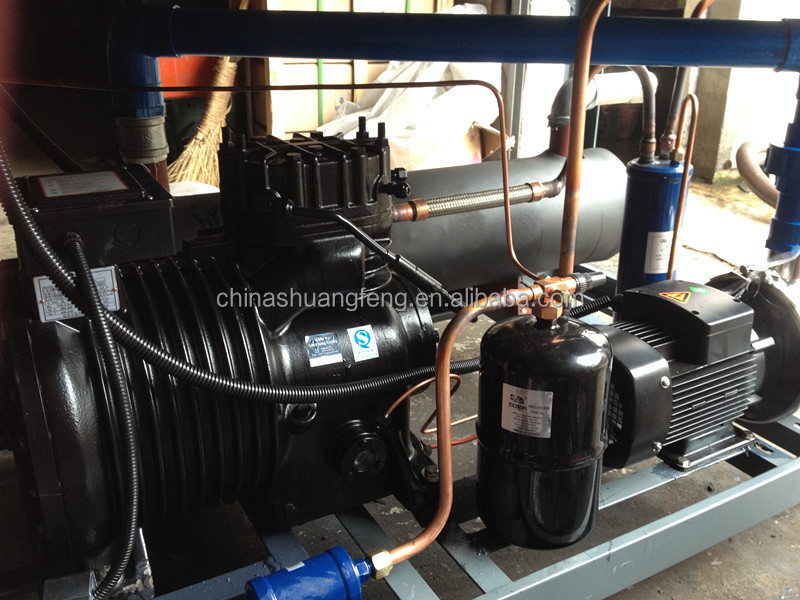

A complete ice block making machine is made of three parts: refrigeration unit, brine tank and crane system.

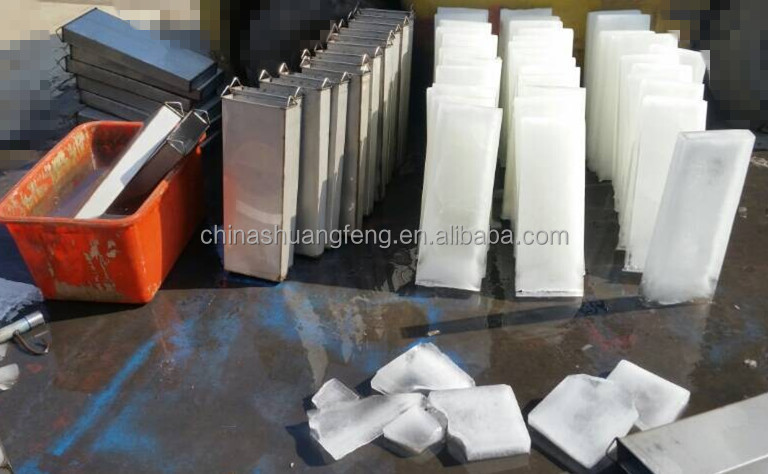

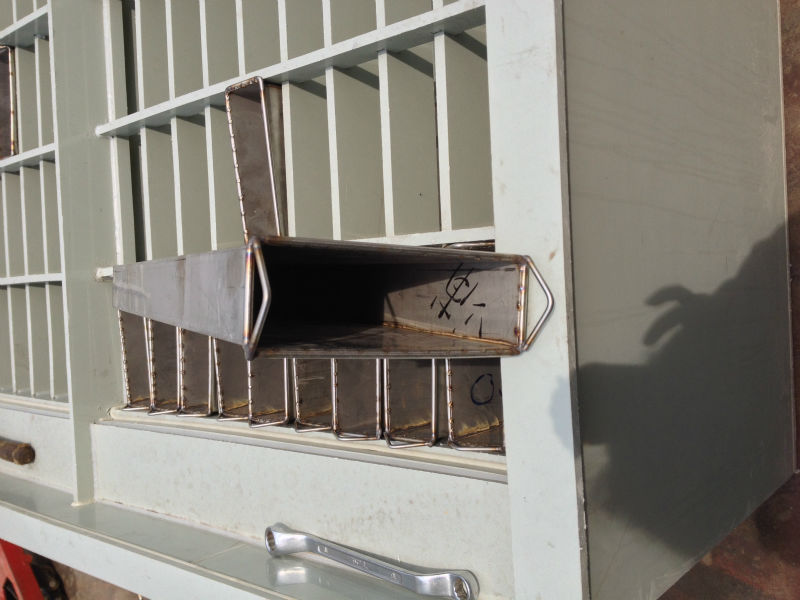

5kg ice mould

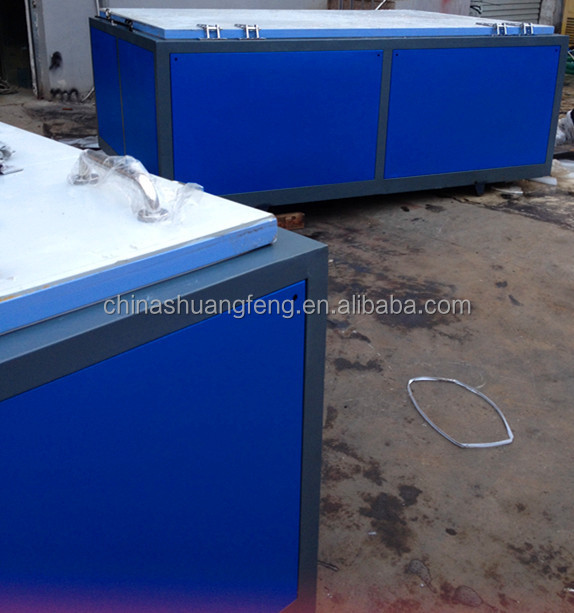

block ice machine





Main components of ice block machine :



Item

Name of Components

Brand Name

Country

1

Compressor

Copeland

Germany

2

Evaporator

SHILINBOER

China

3

Water condenser

SHILINBOER

China

4

Expansion valve

DANFOSS

Denmark

5

Solenoid valve

Domestic famous brand

china

6

Electrical components

  CHNT

china

7

Ice tank

Stainless steel 304

8.

Ice bucket

Stainless steel pump

china

9

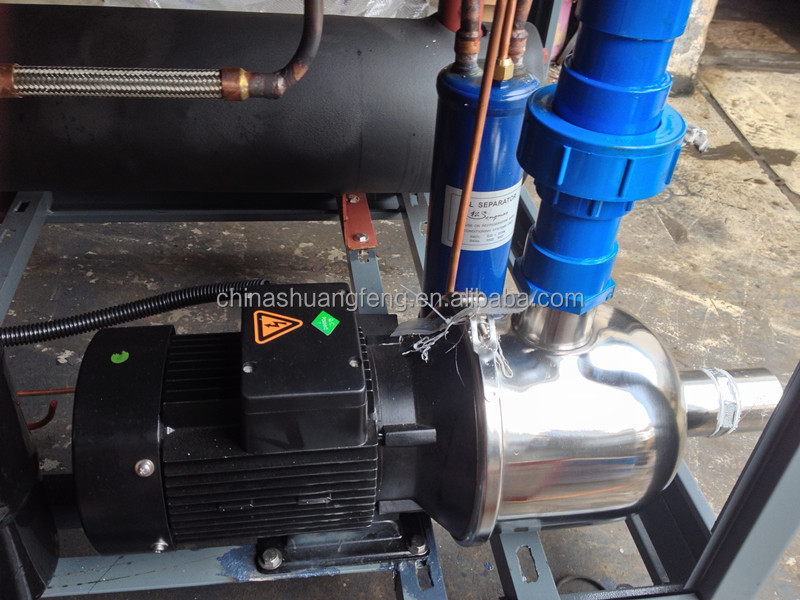

Water pump

Stainless steel pump

china

10

Filter

ZOER china

11

Temperature controller

New Asia

China

12

Pressure Gauge

SINZ                                        china

13

Safety device

Compressor overload,

high/low voltage switch

protection, water breaking,

antifreeze, etc
