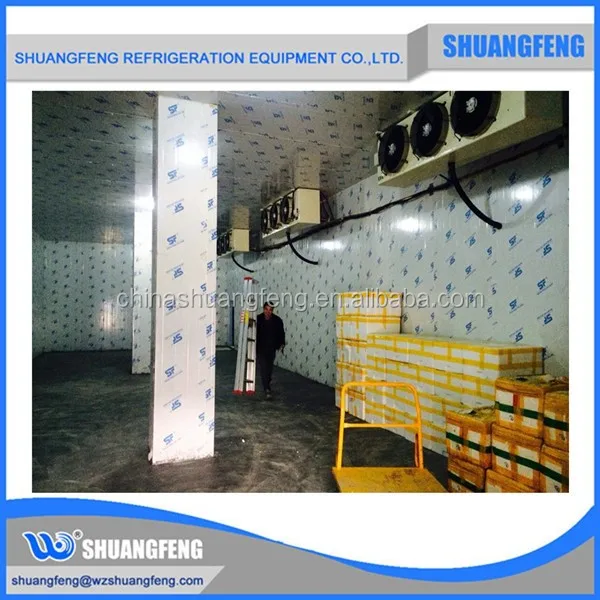

Modular cold room with various standard sizes and storage capacity may be specified or selected. according to the requirements of customer. Main parts of cold room : cold room panel, door and refrigeration unit.
Classification Temperature of cold room: 1,0 °C ~ + 22°C: Communication Station, Mushroom Plant, Medicines Storage, Processing Room, Packing Room 2,-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh, 3,-10 °C ~ -20 °C: Freezer Storage 4,-25 °C ~ -30 °C: Low Temperature Storage, Quick-Freeze 5,-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
Cold Room Tempreture Thickness Of The Cold Room Wall and Proof 5—15 ℃ 75mm -15—5 ℃ 100mm -20—-15℃ 120mm -30—-20℃ 150mm Low the -30℃ 200mm
Cold Room Features: 1. Modular insulation panel, Installation is simple, easy to install 2. Refrigerant: R22, R404A,etc. 3. Temperature Range: From - 35°C To + 30°C 4. Room Size: According to the customer request design 5. Functions: Keep Fresh, Frozen, Quick-Freeze, Fire-Proof, 6. The world famous brand refrigeration fittings 7. Long life cycle 8. Full automatic control, easy to operation and management 9. Defrost Type: Electric defrosting, Water defrosting 10.High efficiency and energy saving design

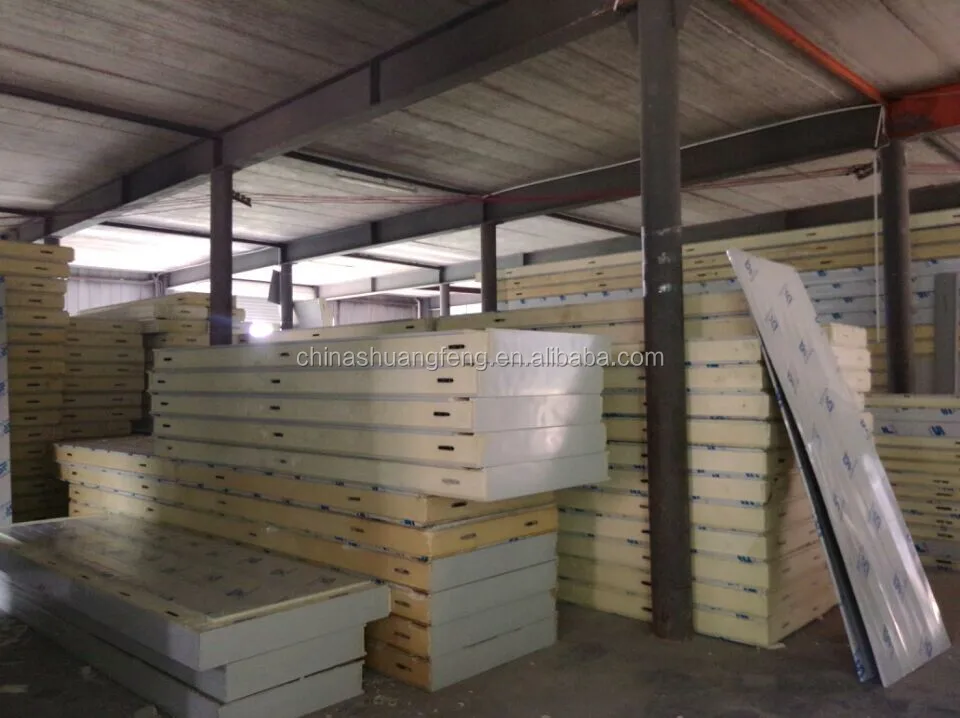

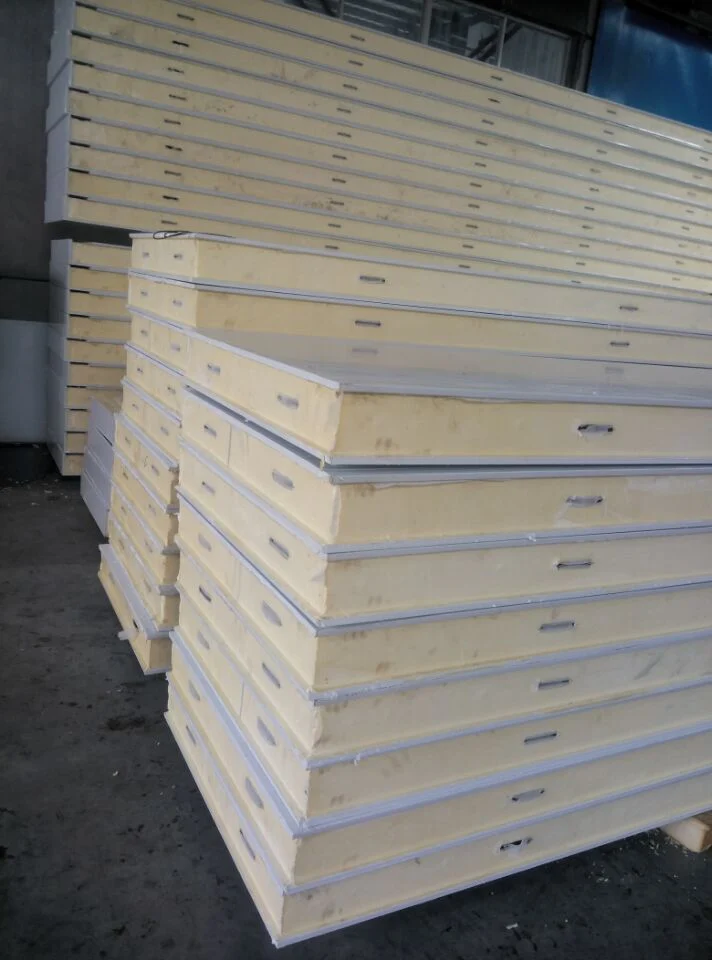

Cold room panel

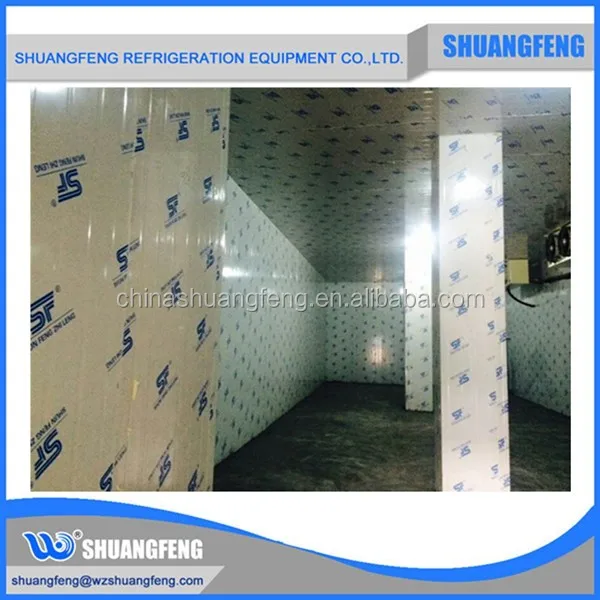

PU (Polyurethane) panels as wall and roof and floor are used for cold room insulation and convenient for transport and assembly. Combined cold rooms panels are produced by pressure injection of group mould which could 100% adhere with polyurethane insulation material without material supporting. Panel circumference is sealed by heat-insulation material to ensure seal at joints to prevent cooling leakage and further water penetration. Cold panel could assemble different size cold room based on feet. Cold room peal cover is groove pressed by painted steel panel. Door frame, door panel structure and insulation are all the same as wall panel. Anti-dew heater and magnetic glue strip installed by door side are adopted to prevent dew and cooling leakage.
Cold room door

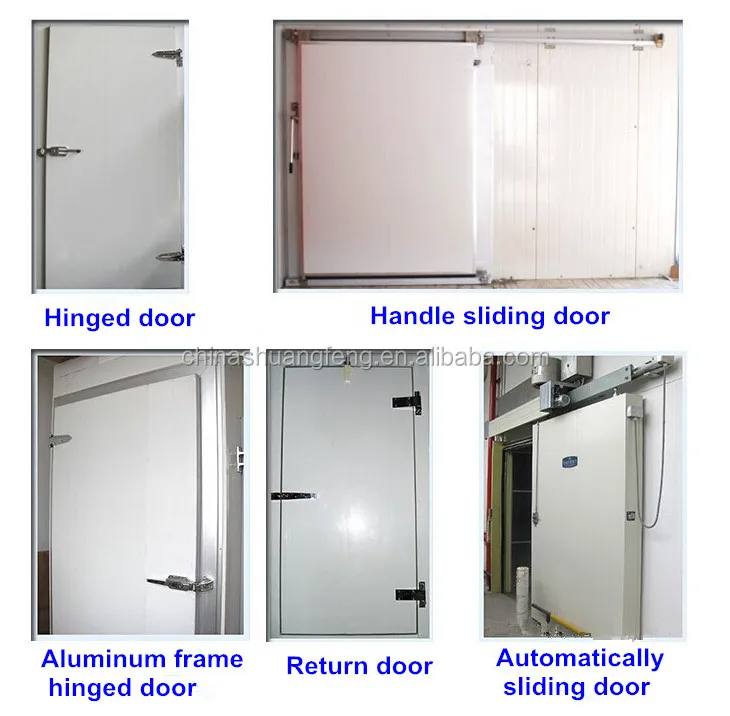

There are some kinds of door for your choose, such as Hinged door,heavy-duty hinged door, handle sliding door, aluminum frame hinged door, return door, and automatically sliding door.
Control System: Microprocessor Controller, exact temperature sensor. Temperature can be set freely during its range. LCD touch screen display the working condition of the compressor, fan, valve, defrosting system.
Alarm System: Compressor fault alarm, compressor high/low voltage alarm, exhaust system high/low temperature alarm, liquid return system alarm, sensor fault alarm, etc. The computer connected will display all these working information. History temperature and alarm data can be checked and printed.

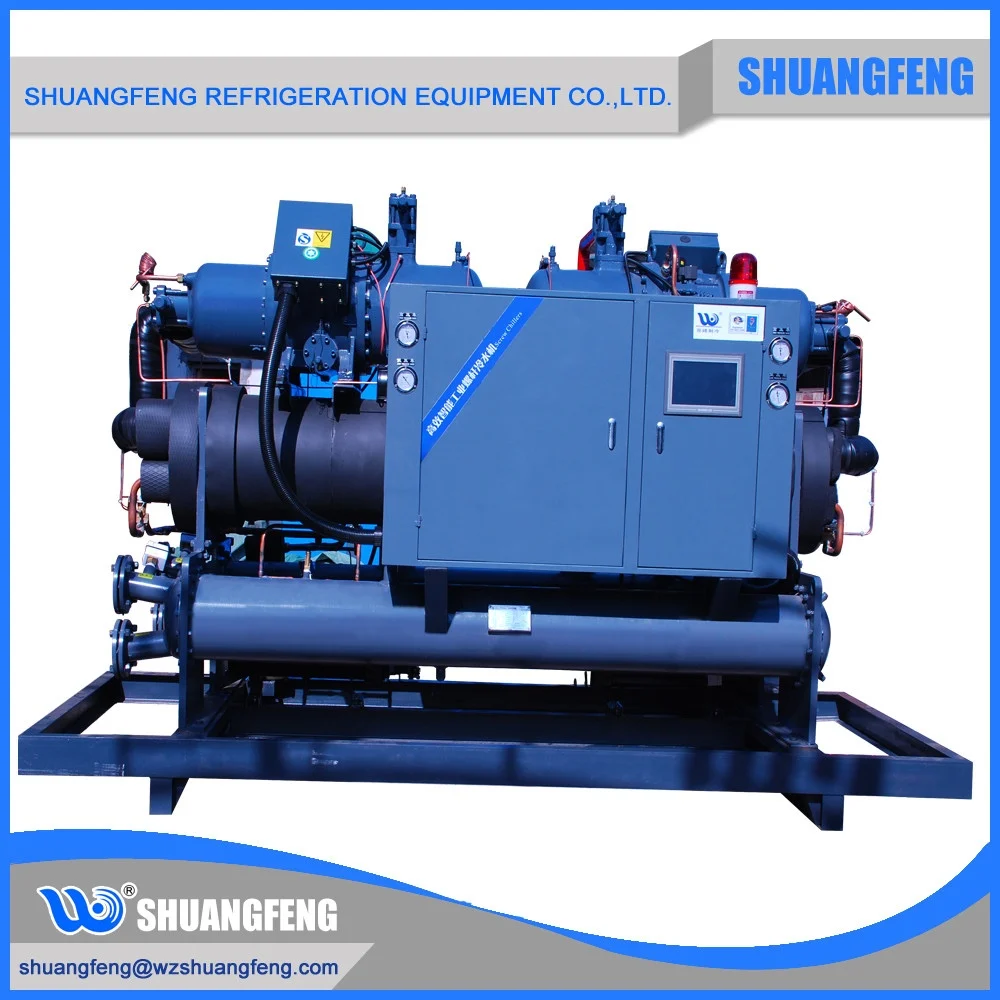

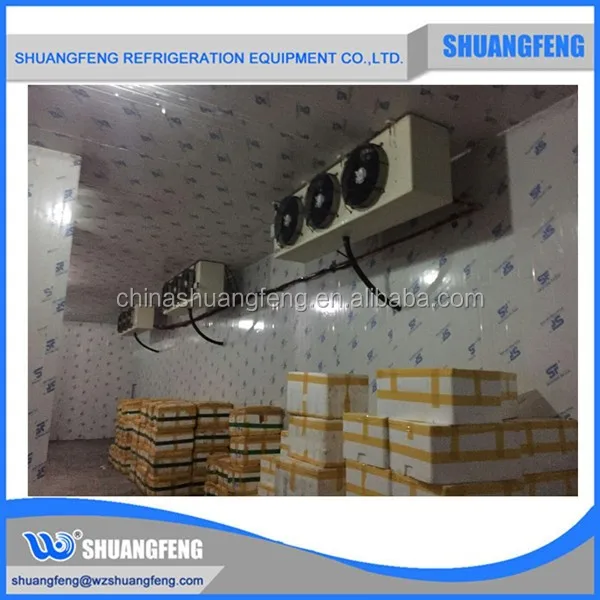

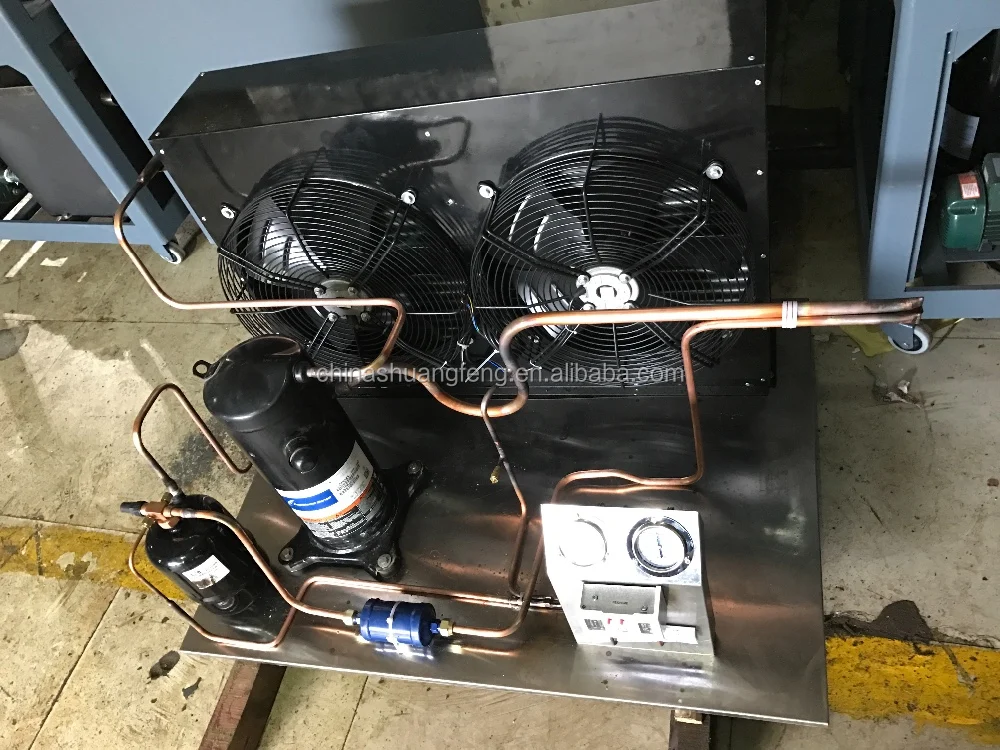

Condenser Unit: Adopts cropland compressor or HANDBELL screw type compressor, high quality full closed/semi-closed compressor, efficiently and low noise Efficient air-cooled condenser/water chilling unit, green refrigerant, low noise motor. Inner evaporator is equipped with DL ceiling-style/aluminium-alloy-pipe-style air cooler.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Permanent technical support and consultation all life long for the machines.
SHUANGFENG Refrigeration Equipment Manufacture Co.,LTD Since being founded in 1999, is a multi-business enterprise engaged in researching, developing, manufacturing and exporting refrigeration products. Paying attention to personnel training and introduction of modern scientific management techniques, we have meanwhile established an engineering service team that boasts powerful technical force. Our chillers are widely used in field of plastic, electroplating,leather,medicine,chemical,shoes,printing,fungus mushroom production environment project,agricultural cultivation,etc. All products are according relative national standards design and make it, with advantages of compact design, elegant appearance,convenient maintenance and complete functions. The products are welcome by different area and country, such as central Asia,East Asia and North America and so on.
The company established a perfect sales service system that integrates prostyle, during-sale and after sale service, so could provide the users good quality and excellent service in time.
We promise all products warranty for one year and life-long maintenance.

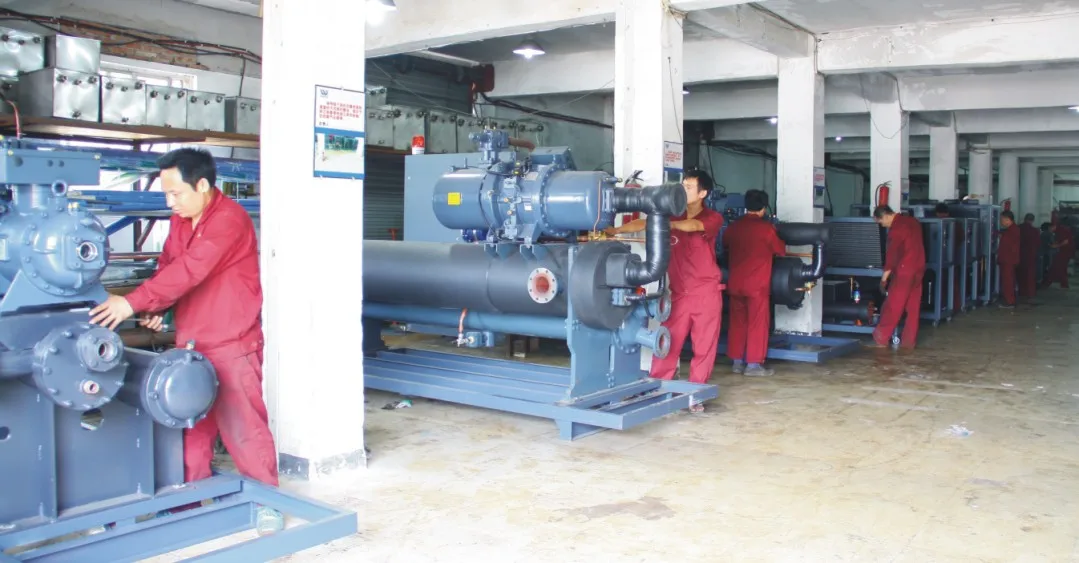

Chiller and cooling tower workshop
If there is anything we can do for you, we shall be more than pleased to do so. Thanks for your visit our products. Have a nice day !
